What are the steps in sheet metal fabrication?

Sheet metal fabrication is a manufacturing process used to create products and components from sheet metal materials. This process involves several steps, from the initial design and material selection to cutting, forming, and finishing. Here are the typical steps in sheet metal fabrication:

1. Design and Engineering:

   - Conceptualization: The process begins with the conceptualization of the product or component. Designers and engineers create detailed drawings or digital models specifying dimensions, tolerances, and material choices.

   - CAD Modeling: Computer-Aided Design (CAD) software is often used to create precise 2D or 3D models of the part, which helps in visualization and detailed planning.

2. Material Selection:

   - Material Choice: Select the appropriate sheet metal material for the project based on factors like strength, corrosion resistance, cost, and appearance. Common materials include steel, aluminum, stainless steel, copper, and brass.

   - Sheet Metal Thickness: Determine the required thickness of the sheet metal, which affects the strength and stiffness of the final product.

3. Sheet Metal Cutting:

   - Shearing: For straight cuts and simple shapes, shearing is used to cut the sheet metal into the desired size and shape. Shearing involves the use of a guillotine-like machine to make straight-line cuts.

   - CNC Laser Cutting: For more complex shapes and precision cutting, Computer Numerical Control (CNC) laser cutting machines are used. These machines use a high-energy laser beam to cut through the metal with great accuracy.

   - Plasma Cutting: Plasma cutting is another method for cutting sheet metal, especially for thicker materials. It uses a plasma torch to melt through the metal.

4. Sheet Metal Bending and Forming:

   - Press Brake: The sheet metal is placed in a press brake machine, where a punch and die set is used to bend and form the material into the desired shape. This process is known as bending or forming and creates features like angles, curves, and flanges.

   - Roll Forming: Roll forming machines are used to create cylindrical or curved shapes from sheet metal. The metal is passed through a series of rollers that progressively bend it into the desired form.

5. Assembly:

   - Joining: If the final product requires multiple pieces of sheet metal, they are assembled using various methods, including welding, fasteners (screws, rivets), adhesives, or clinching (mechanical joining without additional materials).

   - Hardware Insertion: Fasteners, nuts, bolts, and other hardware may be inserted and secured during this stage.

6. Surface Finishing and Coating:

   - Deburring: After cutting and forming, the edges and surfaces of the sheet metal may be deburred to remove sharp edges and improve safety and aesthetics.

   - Surface Treatment: Depending on the application, the sheet metal may receive additional surface treatments such as painting, powder coating, plating, or anodizing for corrosion protection and improved appearance.

7. Quality Control and Inspection:

   - Dimensional Inspection: The final product is inspected to ensure it meets the specified dimensions, tolerances, and quality standards.

   - Visual Inspection: A visual inspection is performed to check for defects, imperfections, or surface irregularities.

   8. Packaging and Shipping:

   - Packaging: The finished sheet metal products are packaged securely to protect them during transportation and delivery.

   - Shipping: The products are then shipped to their destination, whether it's an assembly line, construction site, or retail store.

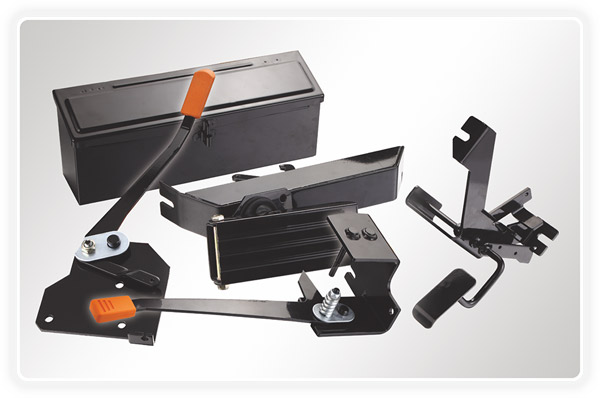

Sheet metal fabrication is a versatile process that can be adapted to create a wide range of products, from simple brackets and enclosures to complex machinery components and architectural elements. The specific steps may vary depending on the complexity of the project and the equipment and techniques employed by the fabrication shop.
