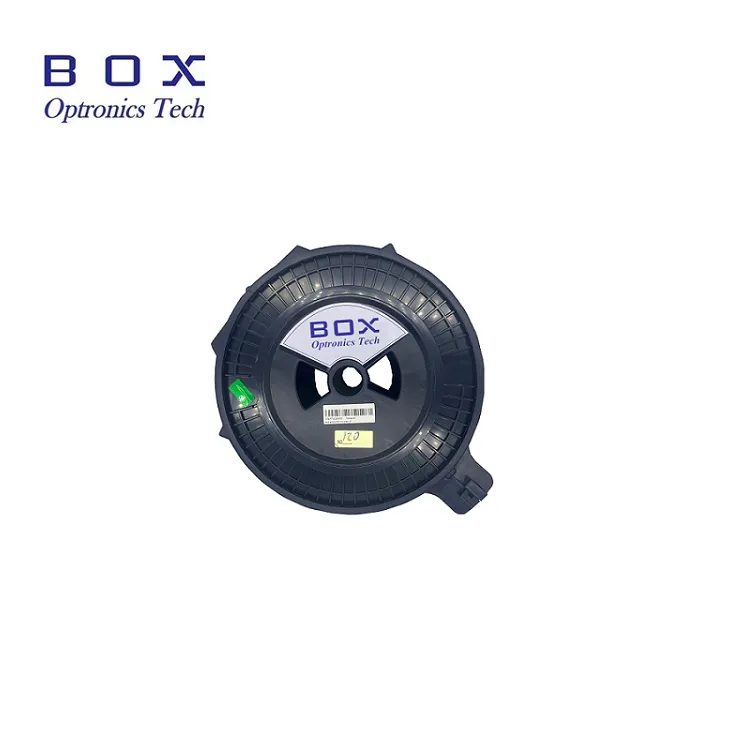

Characteristics and Features of High absorption Erbium-doped Fiber

High absorption erbium-doped fiber (EDF) is a specialized optical fiber used in high-performance laser systems and optical amplifiers. It is doped with erbium ions to achieve high efficiency in absorbing pump light and converting it into laser light or amplified signals. Here are the key characteristics and features of high absorption erbium-doped fiber:

1. Doping and Composition

- Erbium Doping: Contains a high concentration of erbium ions which are responsible for the fiber’s ability to absorb and emit light. This high doping level enhances the fiber's ability to absorb pump light efficiently.

- Host Glass: Typically made from silica or other specialized glass materials that support the erbium ions and provide the necessary optical properties for the fiber.

2. Absorption Characteristics

- High Absorption Coefficient: Features a high absorption coefficient at specific pump wavelengths, such as 980 nm or 1480 nm. This high absorption allows for efficient pumping of the fiber.

- Pump Wavelengths: Optimized for particular pump wavelengths, ensuring efficient energy transfer from the pump light into the fiber.

3. Emission Characteristics

- Emission Wavelength: Primarily emits light in the 1550 nm wavelength range, which is ideal for telecommunications due to its low attenuation in standard optical fibers.

- Gain Spectrum: The fiber provides gain over a broad spectrum, making it suitable for amplifying signals across a range of wavelengths within the 1550 nm band.

4. Applications

- Fiber Lasers: Utilized in high-power fiber lasers where high absorption leads to efficient conversion of pump light into laser output. Applications include industrial cutting, medical procedures, and scientific research.

- Optical Amplifiers: Employed in erbium-doped fiber amplifiers (EDFAs) to boost optical signals in telecommunications networks. This helps in extending the range and improving the quality of optical communications.

- Laser Systems: Integral to various laser systems requiring efficient light amplification and precise control over optical gain.

5. Performance Metrics

- Efficiency: High absorption erbium-doped fibers are designed to maximize the efficiency of energy conversion from the pump light to the laser or amplified light. Efficiency is influenced by the absorption coefficient and the length of the fiber.

- Gain: Provides optical gain, which is crucial for amplifying weak signals in optical networks. The amount of gain depends on the fiber's doping concentration and the pump power.

6. Design Considerations

- Fiber Length: The length of the fiber affects its gain and absorption characteristics. Longer fibers can provide more gain but may require careful management of pump power and thermal effects.

- Core Diameter: The core diameter of the fiber affects the mode field diameter and optical properties. It is designed to match the pump light and signal light profiles.

7. Thermal and Environmental Stability

- Thermal Management: Effective thermal management is required to handle the heat generated during high-power operation, which can impact performance and longevity.

- Environmental Protection: The fiber may be protected with coatings or jackets to safeguard against environmental factors such as moisture, chemicals, and physical damage.

8. Integration and Compatibility

- System Integration: Designed to integrate with various optical components, including pump lasers, beam combiners, and optical filters. Compatibility with these components is essential for optimal performance.

- Pump Source Compatibility: The fiber is matched to specific pump sources to ensure effective absorption and amplification.

9. Cost and Availability

- Cost: The cost of high absorption erbium-doped fiber can vary based on factors such as doping concentration, fiber length, and customization needs. Higher doping levels and specialized designs typically increase the cost.

- Availability: Supplied by specialized manufacturers and may be available in custom configurations to meet specific application requirements.

10. Standards and Specifications

- Industry Standards: Manufactured to meet industry standards for optical performance, safety, and reliability. These standards ensure the fiber’s performance and compatibility with other optical systems.

- Certification: May come with certifications or test reports verifying its optical properties, including absorption and emission characteristics.

Summary

High absorption erbium-doped fiber is a crucial component in advanced laser and amplification systems, designed for efficient absorption of pump light and effective amplification of optical signals. Its key features include high doping levels of erbium, high absorption coefficients at specific wavelengths, and efficient emission in the 1550 nm range. It is used in high-power fiber lasers and optical amplifiers, with considerations for thermal management, system integration, and environmental protection. The fiber is available in various lengths and configurations to meet specific application needs and is subject to industry standards and specifications.
