Components of a Solar Ground Mounting System

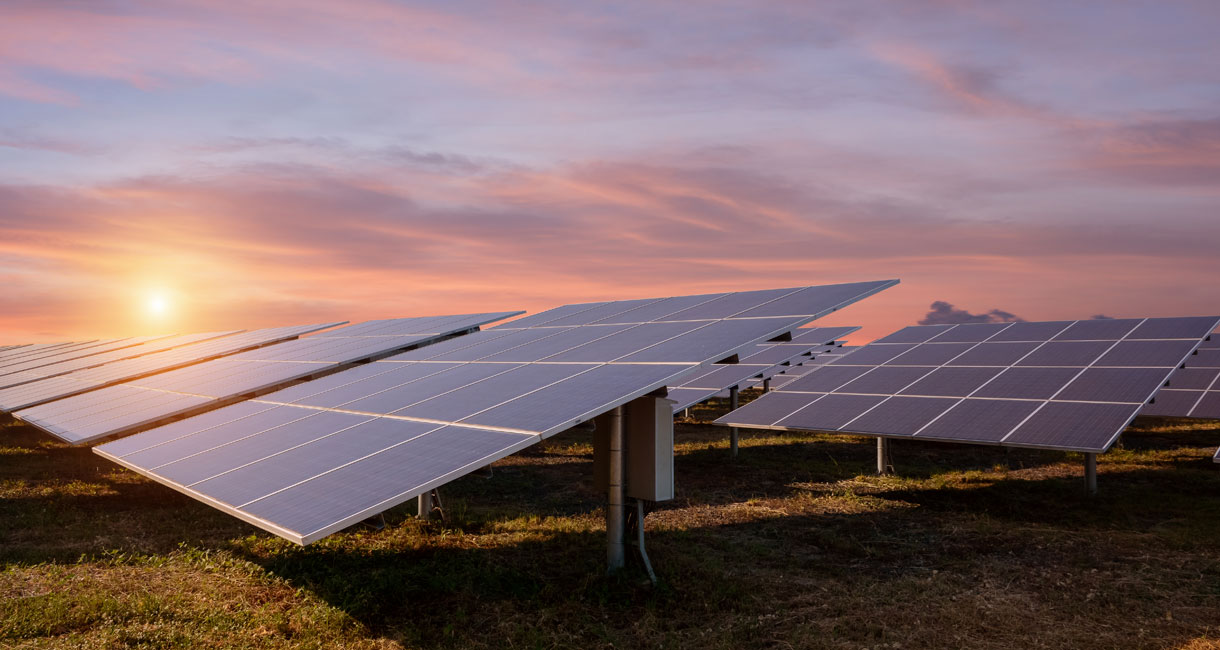

A solar ground mounting system is a structure designed to support solar panels installed on the ground rather than on a rooftop. These systems are essential for large-scale solar installations in areas where rooftop space is limited or unsuitable. Here’s an overview of what a solar ground mounting system typically involves:

Components of a Solar Ground Mounting System:

1. Support Structure:

  - Racking System: Framework made of aluminum or steel that supports and holds the solar panels in place.

  - Ground Screws or Piles: Anchors that secure the racking system to the ground. These are driven into the soil to provide stability and support.

2. Mounting Hardware:

  - Module Clamps: Secure solar panels to the racking structure without damaging the panels.

  - Rails: Horizontal beams that connect the supports and provide a mounting base for the solar panels.

3. Adjustability and Tilt Angle:

  - Tilt Legs or Adjustable Angles: Some systems allow for adjusting the tilt angle of the solar panels to optimize energy production based on the sun’s position and seasonal changes.

4. Foundation:

  - Concrete Pads or Ballasts: Provide additional stability and support for the mounting system, especially in areas with softer soil conditions.

5. Wire Management:

  - Cable Management Clips: Organize and secure cables along the racking system to prevent damage and ensure a neat installation.

  - Grounding Equipment: Ensures electrical safety by properly grounding the system according to local electrical codes.

6. Grounding and Electrical Connections:

  - Inverter Mounting: Location for mounting inverters that convert DC electricity from the solar panels into usable AC electricity.

  - Wiring and Connectors: Routes wiring from the solar panels to the inverters and ultimately to the electrical grid or battery storage system.

Advantages of Solar Ground Mounting Systems:

- Optimal Placement: Allows for optimal orientation and tilt angle adjustments to maximize solar energy production.

- Space Utilization: Suitable for locations with ample ground space or unsuitable rooftops, enabling larger solar installations.

- Maintenance Accessibility: Provides easy access for maintenance and cleaning compared to rooftop installations.

- Scalability: Can be easily expanded or modified to accommodate additional solar panels as energy needs grow.

Considerations:

- Site Assessment: Evaluate soil conditions, terrain, and shading to determine the most suitable type of ground mounting system.

- Local Regulations: Comply with local building codes, zoning regulations, and permitting requirements for ground-mounted solar installations.

- Installation Expertise: Requires professional installation to ensure proper assembly, stability, and electrical safety.

Solar ground mounting systems are versatile solutions for generating renewable energy in residential, commercial, industrial, and utility-scale applications. They offer flexibility, efficiency, and sustainability benefits by harnessing solar power from expansive ground-level installations.
