Considerations Regarding Solar Panel Rail Mid Clamps

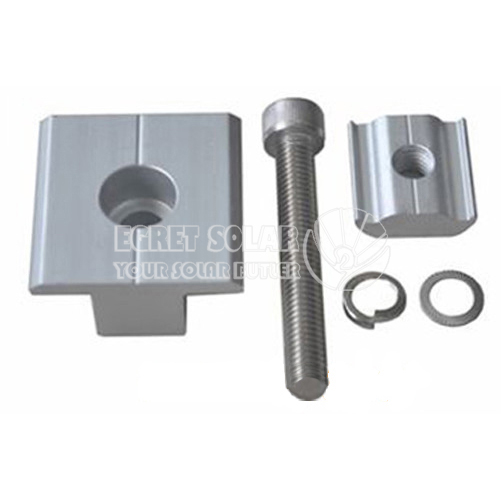

A solar panel rail mid clamp is a component used in photovoltaic (PV) solar panel installations to secure solar panels to mounting rails. These clamps are typically placed along the length of the solar panel, between two adjacent panels, to hold them in place and maintain proper spacing. Here are some key features and considerations regarding solar panel rail mid clamps:

1. Compatibility: Solar panel rail mid clamps are designed to fit specific mounting rails used in solar panel installations. They come in various sizes and configurations to match the dimensions and profiles of the mounting rails and solar panels being installed. It's essential to ensure compatibility between the clamps and the rest of the mounting system components.

2. Material: These clamps are usually made from high-quality, corrosion-resistant materials such as aluminum or stainless steel. The choice of material depends on factors such as durability, compatibility with the mounting system, and resistance to environmental conditions.

3. Design: Solar panel rail mid clamps feature a simple yet robust design that allows them to securely grip the solar panel and mounting rail. They typically include a clamp body with integrated clamping arms or brackets that engage with the mounting rail and apply pressure to hold the solar panel in place.

4. Clamping Mechanism: The clamping mechanism of these clamps is designed to provide a strong and reliable grip on the solar panel and mounting rail without damaging the panel's frame or surface. The clamps may include adjustable or sliding components to accommodate variations in panel thickness and ensure a tight fit.

5. Installation: Solar panel rail mid clamps are installed along the length of the mounting rail, typically at predetermined intervals specified by the solar panel manufacturer or installation guidelines. Installation is usually straightforward and can be completed using standard hand tools. Some clamps may include pre-assembled components or mounting hardware for added convenience.

6. Compatibility with Solar Panels: These clamps are designed to work with various types and sizes of solar panels, including both framed and frameless panels. They provide a versatile and secure attachment point for mounting solar panels onto the mounting rails, ensuring stability and alignment.

7. Weather Resistance: Solar panel rail mid clamps are engineered to withstand exposure to harsh environmental conditions, including high winds, rain, snow, and temperature fluctuations. Corrosion-resistant coatings or finishes may be applied to enhance weather resistance and durability.

8. Load Capacity: These clamps are designed to provide sufficient clamping force to secure solar panels to the mounting rails and withstand wind and snow loads as per engineering specifications and local building codes. The load capacity of the clamps should be matched to the specific requirements of the solar panel installation.

9. Certifications and Compliance: Solar panel rail mid clamps may be tested and certified to meet industry standards and building code requirements for structural integrity, load capacity, and safety. It's essential to select clamps that are compliant with relevant regulations and guidelines for your specific installation.

When selecting solar panel rail mid clamps for a solar panel installation, it's crucial to consider factors such as compatibility with the mounting system, material quality, design features, installation ease, weather resistance, load capacity, and compliance with relevant standards. Working with experienced solar installers or engineers can help ensure proper selection, installation, and performance of these clamps in your solar PV system.
