Features and applications of metal film fixed resistors

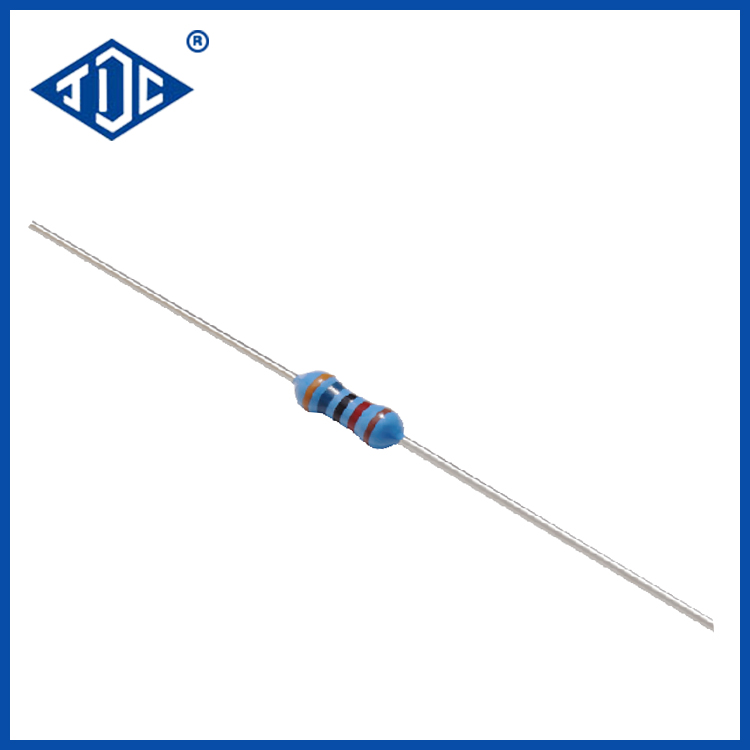

A metal film fixed resistor is a type of passive electronic component used to limit or control the flow of electric current in a circuit by introducing electrical resistance. These resistors are constructed with a resistive element made from a thin metal film deposited onto a ceramic or glass substrate. Metal film resistors are known for their precision, stability, and low noise characteristics. Here are some key features and applications of metal film fixed resistors:

Key Features:

1. Resistive Element: Metal film resistors have a resistive element made from a thin layer of metal (typically nickel-chromium, tantalum, or similar alloys) that is deposited onto a ceramic or glass substrate. The length and width of the metal film determine the resistance value.

2. High Precision: Metal film resistors offer precise resistance values, allowing for accurate control of current and voltage in circuits. They are available with tolerances as low as ±0.1%.

3. Low Noise: These resistors have low electrical noise characteristics, making them suitable for applications where noise should be minimized, such as in audio circuits.

4. Stability: Metal film resistors provide good long-term stability and reliability, with minimal drift in their resistance value over time.

5. Temperature Coefficient: They often have a low temperature coefficient, meaning their resistance value changes only slightly with temperature variations.

6. Low Inductance: Metal film resistors typically have low inductance, making them suitable for high-frequency applications and minimizing unwanted electrical effects.

Applications:

1. Precision Circuits: Metal film fixed resistors are commonly used in precision circuits, where precise resistance values are essential for maintaining accurate voltage levels.

2. Audio Equipment: They are widely used in audio equipment, including amplifiers, preamplifiers, equalization circuits, and high-fidelity audio devices, where low noise and accuracy are crucial.

3. Signal Conditioning: Metal film resistors are used in signal conditioning and amplification circuits to set specific gain values and control signal levels.

4. Filter Circuits: They are employed in filter circuits to determine the cutoff frequencies and shape the filter response.

5. Feedback Networks: Metal film resistors can be found in feedback networks in operational amplifiers (op-amps) and other feedback-based circuits.

6. Aerospace and Defense: They are used in aerospace and defense applications, where precision and reliability are critical.

7. Test and Measurement Equipment: Metal film resistors are used in test and measurement devices where precise resistance values are important.

Metal film fixed resistors are valuable components in both analog and digital circuits where precision, reliability, and low noise are paramount. Their resistance values are accurately defined during manufacturing, and they are available in various tolerance levels, power ratings, and package sizes to suit different circuit design requirements.
