Information about Ip68 Waterproof Connectors

An IP68 waterproof connector is designed to provide a high level of protection against water, dust, and other environmental factors. The "IP" in IP68 stands for "Ingress Protection," and the number "68" specifies the level of protection provided by the connector. Here’s an overview of IP68 waterproof connectors:

Key Features:

1. Ingress Protection (IP) Rating:

  - IP68: Indicates that the connector is fully protected against dust ingress and can withstand prolonged immersion in water beyond 1 meter (usually up to 3 meters or more). It ensures that the connector remains functional and safe in harsh environmental conditions.

2. Material:

  - Housing: Typically made from high-quality materials such as polycarbonate, nylon, or metal alloys, which offer durability and resistance to environmental stress.

  - Seals: Equipped with rubber or silicone gaskets and seals to provide a watertight and airtight seal.

3. Design:

  - Contacts: Designed with corrosion-resistant metal contacts, often gold or silver-plated, to ensure reliable electrical connections.

  - Coupling Mechanism: Includes mechanisms such as screw-on or bayonet couplings to securely connect and disconnect the connectors while maintaining the waterproof seal.

4. Temperature Range:

  - Operating Temperature: Can operate within a specified temperature range, typically from -40°C to +85°C or higher, depending on the manufacturer and model.

Applications:

1. Outdoor Equipment: Used in outdoor or field equipment such as lighting fixtures, surveillance cameras, and telecommunications equipment.

2. Marine: Ideal for marine applications where exposure to water and salt is common, such as in boats and marine electronics.

3. Automotive: Suitable for automotive applications where connectors are exposed to moisture, dirt, and vibration.

4. Industrial: Applied in industrial environments where connectors need to withstand harsh conditions, including water, dust, and chemicals.

Benefits:

1. Waterproof Protection: Provides reliable protection against water ingress, ensuring functionality and safety in wet environments.

2. Dustproof: Offers complete protection against dust and debris, preventing damage and maintaining performance.

3. Durability: Built to withstand physical stresses, impacts, and environmental conditions, ensuring a long service life.

4. Reliable Connection: Ensures a stable and secure electrical connection, reducing the risk of connection failures or electrical issues.

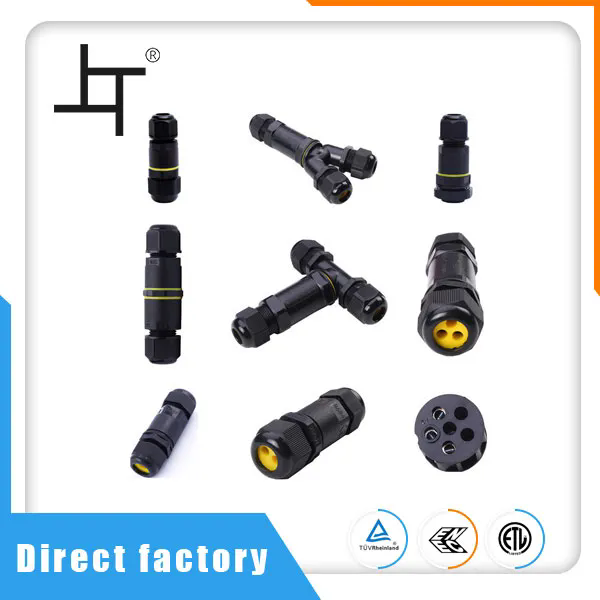

Types of IP68 Waterproof Connectors:

1. Circular Connectors:

  - Design: Typically feature a circular design with multiple pins or contacts arranged in a circular pattern.

  - Applications: Used in a variety of applications, including industrial machinery, automotive, and outdoor equipment.

2. Rectangular Connectors:

  - Design: Feature a rectangular or square shape with a grid of pins or contacts.

  - Applications: Commonly used in industrial and electronic applications where a higher number of contacts is needed.

3. Panel-Mount Connectors:

  - Design: Designed to be mounted on a panel or enclosure, providing easy access and connection points for external equipment.

  - Applications: Used in control panels, enclosures, and outdoor housings.

4. Cable-Mount Connectors:

  - Design: Designed to be attached directly to cables or wires, allowing for flexible connections.

  - Applications: Commonly used in field connections and equipment that requires flexible wiring.

5. Quick-Disconnect Connectors:

  - Design: Feature a mechanism that allows for quick and easy connection and disconnection.

  - Applications: Useful in applications where frequent connections and disconnections are required.

Installation and Maintenance:

1. Proper Sealing: Ensure that all seals and gaskets are properly installed and intact during assembly to maintain waterproof protection.

2. Torque Specifications: Follow the manufacturer’s torque specifications for coupling and assembly to avoid damage and ensure a secure connection.

3. Inspection: Regularly inspect connectors for signs of wear, damage, or deterioration and replace them if necessary.

4. Cleaning: Clean connectors carefully to remove any debris or contaminants that could affect performance.

Selection Considerations:

- Connector Type: Choose based on the specific application and connection needs (e.g., circular, rectangular).

- Size and Pin Configuration: Ensure compatibility with the equipment and wiring requirements.

- Material and Durability: Select connectors made from materials that match the environmental conditions of your application.

- Temperature Range: Verify that the connector can operate within the required temperature range.

IP68 waterproof connectors are essential for applications that require robust protection against environmental factors. They ensure reliable performance in challenging conditions and contribute to the longevity and safety of the equipment they are used in.
