Investment Casting: A Precision Manufacturing Process

Investment casting, also known as lost-wax casting, is a sophisticated manufacturing process used to create precise metal parts for a variety of industries. From aerospace and automotive to medical devices and jewelry, investment casting allows manufacturers to produce high-quality, intricate metal components with tight tolerances and excellent surface finishes. This method has a long history, dating back thousands of years, but continues to evolve with advancements in technology and materials. In this blog, we will explore the investment casting process, its applications, and the benefits it offers to modern industries.

What is Investment Casting?

Investment casting is a manufacturing process in which a molten metal is poured into a mold to create a part or component. The process involves several steps, starting with the creation of a wax model of the desired part. The wax model is coated in a ceramic shell that hardens to form the mold. Once the mold is created, the wax is melted away, leaving behind a hollow ceramic shell. The molten metal is then poured into the mold to create the final part. After cooling and solidification, the mold is broken away, and the metal part is cleaned, finished, and inspected for quality.

This method is particularly effective for producing complex shapes that are difficult or impossible to achieve with other manufacturing techniques, such as sand casting or die-casting.

The Investment Casting Process

1. Pattern Creation

  The process begins with the creation of a pattern, typically made from wax, that represents the final part. The pattern is often made using a 3D printing technique, CNC machining, or injection molding. The wax model is an exact replica of the component, including all details, such as intricate features, undercuts, and thin walls.

2. Shell Building

  Once the pattern is created, it is coated with a fine layer of ceramic material to form a mold. The pattern is dipped into a ceramic slurry, followed by sprinkling it with sand to create a thick, durable shell. This process is repeated several times to build up the shell to the desired thickness. The shell is then allowed to harden and dry.

3. Wax Removal

  After the ceramic shell has hardened, the wax pattern inside is melted and drained out. This can be done using heat or by placing the mold in an autoclave, where the wax is heated to its melting point and removed. The shell, now hollow, is left with a cavity in the shape of the desired part.

4. Metal Pouring

  The mold is then heated in a furnace to remove any remaining moisture and prepare it for the metal pouring. Once the mold reaches the required temperature, molten metal is poured into the cavity. Depending on the application and material requirements, the metal can be aluminum, steel, bronze, or other alloys. The metal fills the cavity, taking the shape of the pattern.

5. Cooling and Shell Removal

  After the metal has been poured, the mold is allowed to cool and solidify. Once cooled, the ceramic shell is broken away, revealing the metal part inside. The part is then cleaned to remove any remaining shell material and any imperfections that may have occurred during the casting process.

6. Finishing and Inspection

  Finally, the cast metal part is finished by removing excess material, such as sprues, gates, and risers, which were used during the pouring process. The part may then undergo additional processes, such as heat treatment, machining, polishing, or coating, depending on the requirements of the specific application. The finished part is inspected for quality and precision, ensuring it meets the required specifications.

Applications of Investment Casting

Investment casting is widely used in industries that require high precision, complex geometries, and excellent material properties. Some of the most common applications include:

1. Aerospace

  The aerospace industry relies heavily on investment casting to produce critical components, such as turbine blades, fuel nozzles, and structural parts. These parts must withstand extreme conditions, including high temperatures and stresses, making investment casting an ideal method due to its ability to produce complex and highly detailed parts with superior material properties.

2. Automotive

  Investment casting is used in the automotive industry to create lightweight yet durable components such as engine parts, brake components, and transmission housings. The precision and ability to manufacture parts with complex shapes make it ideal for producing high-performance parts in the automotive sector.

3. Medical Devices

  Investment casting is also used to create high-precision medical devices, including surgical instruments, implants, and prosthetics. The need for precise dimensions and biocompatible materials makes this process well-suited for the medical field, where safety and accuracy are paramount.

4. Jewelry

  One of the earliest applications of investment casting was in the jewelry industry. The process allows jewelers to create intricate, detailed designs in precious metals like gold, silver, and platinum. Investment casting enables the production of custom-made jewelry pieces with fine details that would be difficult to achieve with traditional methods.

5. Industrial Equipment

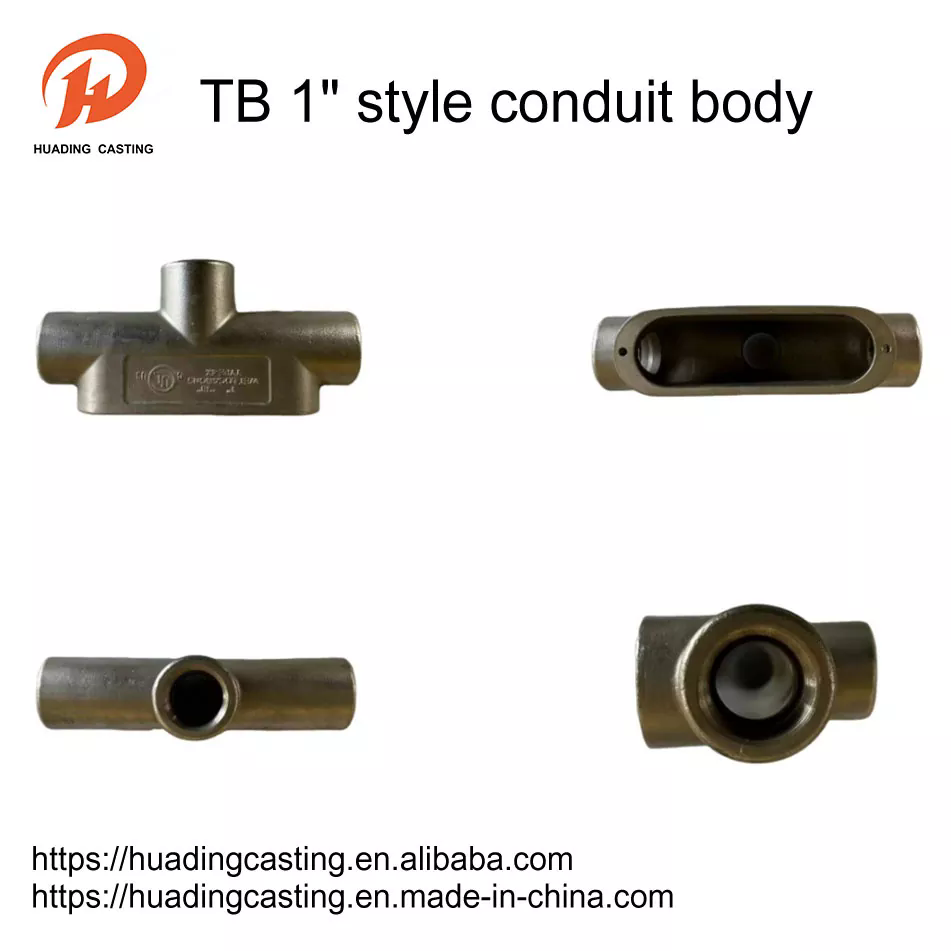

  Investment casting is frequently used to produce parts for industrial equipment, such as pumps, valves, and machinery components. The ability to create high-strength, durable parts with complex geometries is especially useful in industries like energy, chemicals, and manufacturing.

Advantages of Investment Casting

1. Complex Geometries

  One of the primary benefits of investment casting is its ability to produce parts with intricate and complex shapes that are difficult or impossible to achieve with other casting methods. This includes thin walls, undercuts, and internal cavities, all of which can be created with high precision.

2. High Precision and Tolerances

  Investment casting offers exceptional dimensional accuracy and tight tolerances, which reduces the need for post-casting machining and minimizes material waste. This is particularly important in industries where the components must meet strict specifications and performance standards.

3. Material Flexibility

  Investment casting can be used with a wide range of materials, including ferrous and non-ferrous metals, high-performance alloys, and even some ceramic materials. This makes it suitable for producing parts that need specific material properties, such as heat resistance, corrosion resistance, or strength.

4. Cost-Effectiveness for Low to Medium Production Runs

  While the initial setup for investment casting can be costly, it is a cost-effective method for producing low to medium production runs of high-precision parts. The ability to reduce machining requirements and waste material helps keep overall production costs lower.

5. Superior Surface Finish

  Investment casting produces parts with excellent surface finishes, which often require little or no further treatment. This is especially valuable in industries like aerospace and medical devices, where the finish and appearance of parts are critical.

Conclusion

Investment casting is a versatile and highly effective manufacturing process that plays a crucial role in producing high-precision, complex metal parts for various industries. Its ability to handle intricate designs, produce tight tolerances, and use a wide range of materials makes it an essential method in aerospace, automotive, medical, and many other fields. As technology continues to evolve, investment casting is likely to see even more advancements, ensuring that it remains a key player in precision manufacturing for years to come.
